Steel Bars & Profiles

: Flat Steel Bar

: Round Steel Bar

: Square Steel Bar

: Hexagon Steel Bar

: Angulo de aço

: Steel Channel

: Steel I-Beam

: Steel H-Beam

Flat Steel Bar

Dimension: 10mm- 150mm (Customization Available)

Thickness: 3mm - 60mm (Customization Available)

Surface Finishing: Pickling, blasting, rough turning, machine straightening, center-less grinding, polishing

Standard: ASTM A6, ASTM-276, ASTM-A108 etc

Material Range:

Stainless Steel: 301, 304/304L/304H, 310S, 316/316L, 317L, 321/321H, 347/347H, 904L, 630, 631, 410, 420, 430, 201, 202, etc.

Carbon Steel: A36 etc.

Duplex Steel: S31803, S32205, S31500, S32550, S31200, S31260, S32304, S32750, S32760, S32950, etc.

Special Alloy Steel: Monel 400/K-500, Inconel 600/625/800, Incoloy 800H/800HT, Hastelloy B2/C22/C276, 254SMO, 253MA, etc.

Package: PP wrapped/ bundled/ wooden box

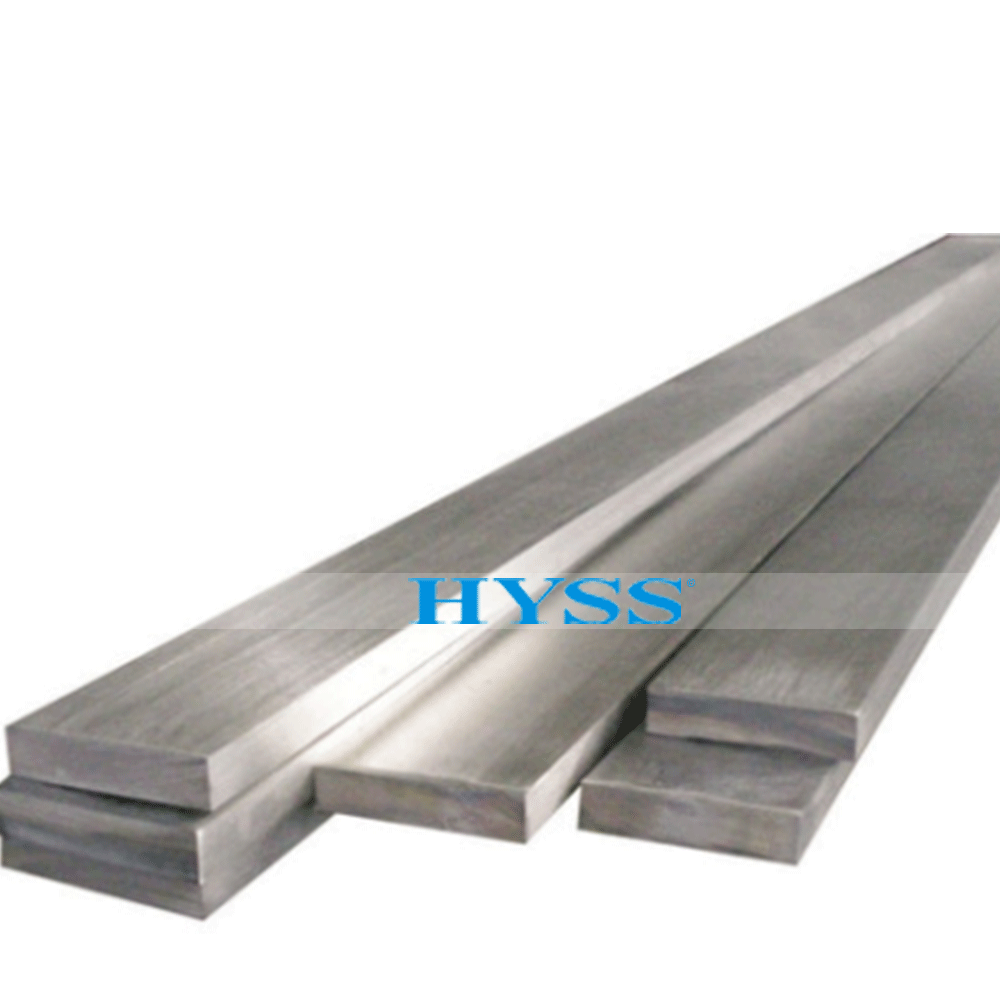

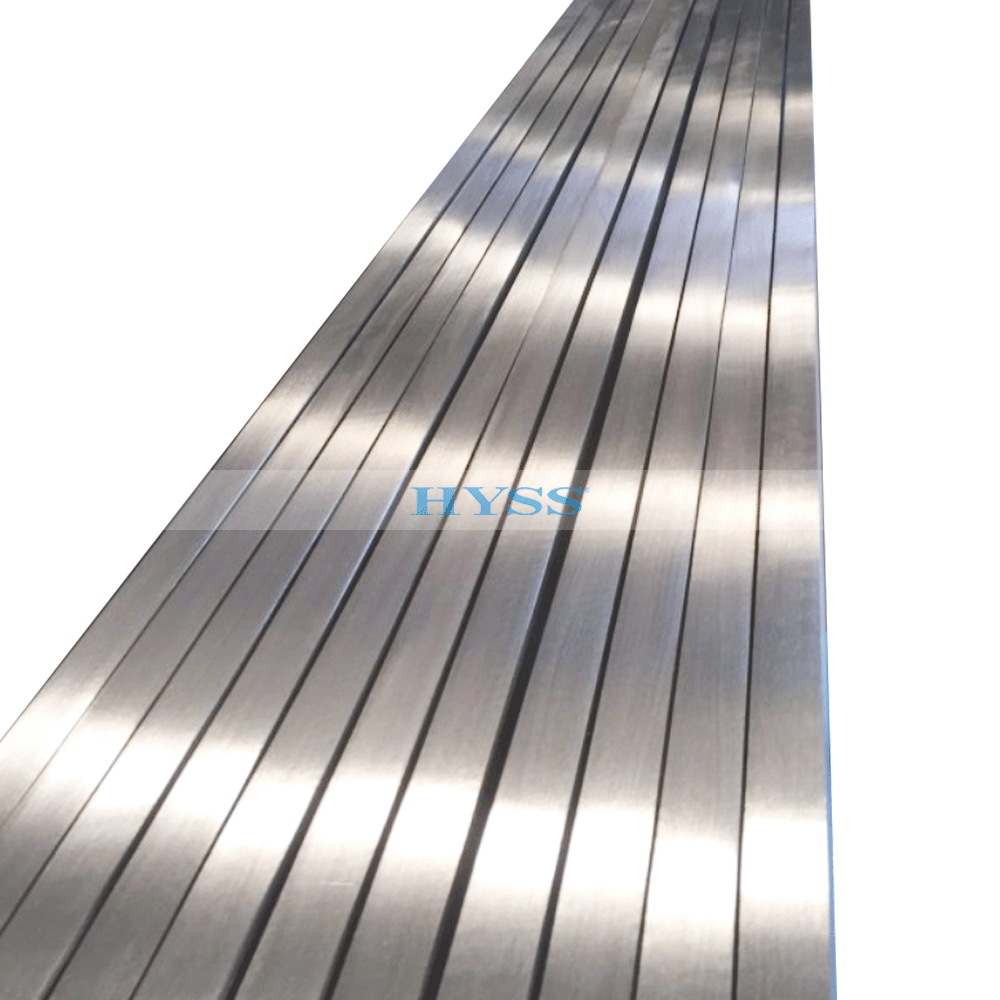

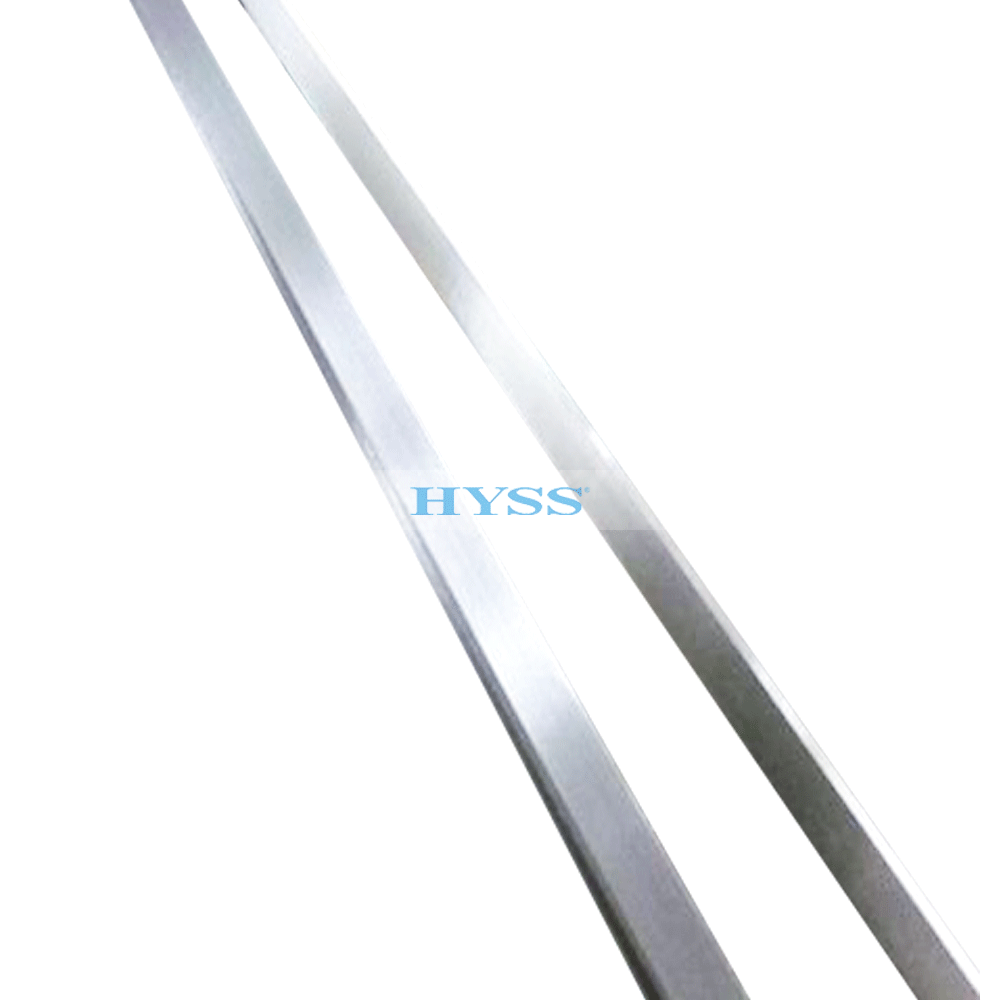

Pictures:

Dimensions as below:

Width (mm)	Thickness(mm)
	3	4	5	6	7	8	9	10	11	12	14	16
	Theoretical Weight / (kg/m)
10	0.24	0.31	0.39	0.47	0.55	0.63
12	0.28	0.38	0.47	0.57	0.66	0.75
14	0.33	0.44	0.55	0.66	0.77	0.88
16	0.38	0.50	0.63	0.75	0.88	1.00	1.15	1.26
18	0.42	0.57	0.71	0.85	0.99	1.13	1.27	1.41
20	0.47	0.63	0.78	0.94	1.10	1.26	1.41	1.57	1.73	1.88
22	0.52	0.69	0.86	1.04	1.21	1.38	1.55	1.73	1.90	2.07
25	0.59	0.78	0.98	1.18	1.37	1.57	1.77	1.96	2.16	2.36	2.75	3.14
28	0.66	0.88	1.10	1.32	1.54	1.76	1.98	2.20	2.42	2.64	3.08	3.53
30	0.71	0.94	1.18	1.41	1.65	1.88	2.12	2.36	2.59	2.83	3.30	3.77
32	0.75	1.00	1.26	1.51	1.76	2.01	2.26	2.55	2.76	3.01	3.52	4.02
35	0.82	1.10	1.37	1.65	1.92	2.20	2.47	2.75	3.02	3.30	3.85	4.40
40	0.94	1.26	1.57	1.88	2.20	2.51	2.83	3.14	3.45	3.77	4.40	5.02
45	1.06	1.41	1.77	2.12	2.47	2.83	3.18	3.53	3.89	4.24	4.95	5.65
50	1.18	1.57	1.96	2.36	2.75	3.14	3.53	3.93	4.32	4.71	5.50	6.28
55		1.73	2.16	2.59	3.02	3.45	3.89	4.32	4.75	5.18	6.04	6.91
60		1.88	2.36	2.83	3.30	3.77	4.24	4.71	5.58	5.65	6.59	7.54

Width (mm)	Thickness(mm)
	18	20	22	25	28	30	32	36	40	45
	Theoretical Weight/(kg/m)
10
12
14
16
18
20
22
25
28
30	4.24	4.71
32	4.52	5.02
35	4.95	5.50	6.04	6.87	7.69
40	5.65	6.28	6.91	7.85	8.79
45	6.36	7.07	7.77	8.83	9.89	10.60	11.30	12.72
50	7.06	7.85	8.64	9.81	10.99	11.78	12.56	14.13
55	7.77	8.64	9.50	10.79	12.09	12.95	13.82	15.45
60	8.48	9.42	10.36	11.78	13.19	14.13	15.07	16.96	18.84	21.20

Width (mm)	Thickness(mm)
	3	4	5	6	7	8	9	10	11	12	14	16
	Theoretical Weight/(kg/m)
65		2.04	2.55	3.06	3.57	4.08	4.59	5.10	5.61	6.12	7.14	8.16
70		2.20	2.75	3.30	3.85	4.40	4.95	5.50	6.04	6.59	7.69	8.79
75		2.36	2.94	3.53	4.12	4.71	5.30	5.89	6.48	7.07	8.24	9.42
80		2.51	3.14	3.77	4.40	5.02	5.65	6.28	6.91	7.54	8.79	10.05
85			3.34	4.00	4.67	5.34	6.01	6.67	7.34	8.01	9.34	10.68
90			3.53	4.24	4.95	5.65	6.36	7.07	7.77	8.48	9.89	11.30
95			3.73	4.47	5.22	5.97	6.71	7.46	8.20	8.95	10.44	11.93
100			3.92	4.71	5.50	6.28	7.06	7.85	8.64	9.42	10.99	12.56
105			4.12	4.95	5.77	6.59	7.42	8.24	9.07	9.89	11.54	13.19
110			4.32	5.18	6.04	6.91	7.77	8.64	9.50	10.36	12.09	13.82
120			4.71	5.65	6.59	7.54	8.48	9.42	10.36	11.30	13.19	15.07
125				5.89	6.87	7.85	8.83	9.81	10.79	11.78	13.74	15.70
130				6.12	7.14	8.16	9.18	10.20	11.23	12.25	14.29	16.33
140					7.69	8.79	9.89	10.99	12.09	13.19	15.39	17.58
150					8.24	9.42	10.60	11.78	12.95	14.13	16.48	18.84

Width (mm)	Thickness(mm)
	18	20	22	25	28	30	32
	Theoretical Weight/(kg/m)
65	9.18	10.20	11.23	12.76	14.29	15.31	16.33
70	9.89	10.99	12.09	13.74	15.39	16.49	17.58
75	10.60	11.78	12.95	14.72	16.48	17.66	18.84
80	11.30	12.56	13.82	15.70	17.58	18.84	20.10
85	12.01	13.34	14.68	16.68	18.68	20.02	21.35
90	12.72	14.13	15.54	17.66	19.78	21.20	22.61
95	13.42	14.92	16.41	18.64	20.88	22.37	23.86
100	14.13	15.70	17.27	19.62	21.98	23.55	25.12
105	14.84	16.48	18.13	20.61	23.08	24.73	26.38
110	15.54	17.27	19.00	21.59	24.18	25.90	27.63
120	16.96	18.84	20.72	23.55	26.38	28.26	30.14
125	17.66	19.62	21.58	24.53	27.48	29.44	31.40
130	18.37	20.41	22.45	25.51	28.57	30.62	32.66
140	19.78	21.98	24.18	27.48	30.77	32.97	35.17
150	21.20	23.55	25.90	29.44	32.97	35.32	37.68

Width (mm)	Thickness(mm)
	32	36	40	45	50	56	60
	Theoretical Weight/(kg/m)
65	16.33	18.37	20.41	22.96
70	17.58	19.78	21.98	24.73
75	18.84	21.20	23.55	26.49
80	20.10	22.61	25.12	28.26	31.40	35.17
85	21.35	24.02	26.69	30.03	33.36	37.37	40.04
90	22.61	25.43	28.26	31.79	35.32	39.56	42.39
95	23.86	26.85	29.83	33.56	37.29	41.76	44.74
100	25.12	28.26	31.40	35.32	39.25	43.96	47.10
105	26.38	29.67	32.97	37.09	41.21	46.16	49.46
110	27.63	31.09	34.54	38.86	43.18	48.36	51.81
120	30.14	33.91	37.68	42.39	47.10	52.75	56.52
125	31.40	35.32	39.25	44.16	49.06	54.95	58.88
130	32.66	36.74	40.82	45.92	51.02	57.15	61.23
140	35.17	39.56	43.96	49.46	54.95	61.54	65.94
150	37.68	42.39	47.10	52.99	58.88	65.94	70.65
